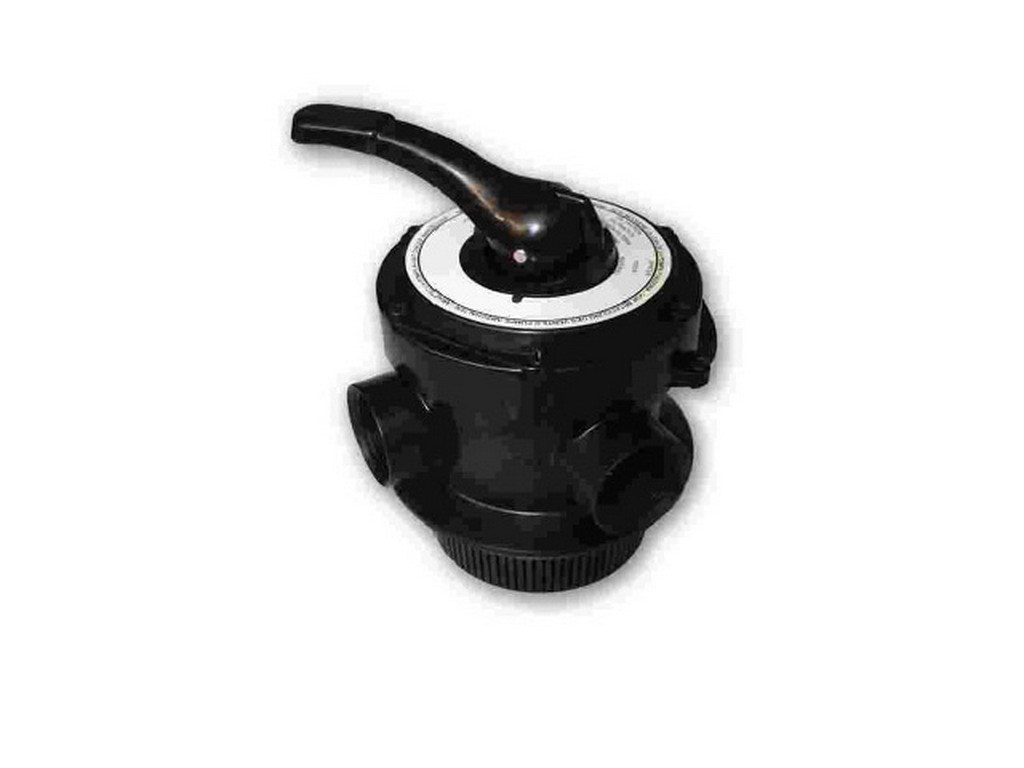

Okay, imagine this: me, sprawled by the pool, basking in the sun, completely clueless about the intricate network of pipes and valves humming beneath my perfectly manicured toenails. It's all "flip-flops, sunscreen, and chill" until suddenly, boom, the pool pump starts making a noise like a grumpy walrus. That's when you realize that knowing a little bit about your pool's plumbing might actually be a good idea. Enter: the magnificent, mysterious, and often misunderstood vanne 4 voies (4-way valve).
So, what is this thing anyway?
Essentially, the vanne 4 voies is the wizard controlling the water flow in your pool system. It's a multi-tasker, directing water between different circuits. Think of it as a train dispatcher for your pool's aquatic railway. (Yes, I'm getting a bit dramatic, but pool plumbing can be exciting! ...Okay, maybe not.)
How Does It Work? (Schéma Fonctionnement)
Here's where the "schéma fonctionnement" (functional diagram) comes in handy. Forget complex engineering diagrams; let's break it down simply:
- Four Ports, Four Possibilities: The valve has four openings (hence the name). These connect to various parts of your pool system: the pump, the filter, the pool itself (intake and return), and sometimes extras like a pool heater or a backwash drain.
- The Handle is Your Remote Control: The handle allows you to select different positions, which dictate which ports are connected to each other. It's like choosing which train tracks the water will take.
- Key Positions: Common positions include:
- Filtering: The standard operation mode where water is drawn from the pool, passes through the filter, and returns clean. (The workhorse of pool maintenance!).
- Backwashing: This reverses the flow, flushing out debris from the filter. Think of it as giving your filter a good scrub. You do backwash your filter, right? You should!
- Rinsing: After backwashing, this position helps settle the filter media before returning to normal filtering.
- Closed/Winterizing: This isolates the pool, typically used during winter.
Each position corresponds to a specific arrangement of internal passages that divert the water. It's all about directing the flow to the right place at the right time.
Why is it so Important?
Well, without it, you'd be manually disconnecting and reconnecting pipes every time you wanted to backwash or switch modes. Imagine the mess! And the time! This valve simplifies everything.
Here's a little secret: understanding your vanne 4 voies can save you money. Knowing how to properly backwash your filter, for example, extends its lifespan and improves its efficiency. Who knew pool plumbing could be so eco-friendly and wallet-friendly?
Troubleshooting: What to Watch Out For
Like any mechanical component, the vanne 4 voies can experience problems. Common issues include:
- Leaking: Usually from the handle or connection points. This often indicates worn seals or O-rings. Pro tip: Replacing these is generally cheaper than replacing the entire valve.
- Stiff Handle: This can be due to mineral buildup or lack of lubrication. Try lubricating it with a silicone-based lubricant.
- Incorrect Flow: If your pool isn't filtering properly, or the backwash isn't working, the valve might be misaligned or internally damaged.
While some repairs are DIY-able, complex issues are best left to a pool professional. Don't be afraid to call in the experts!
So there you have it – a (hopefully) not-too-technical overview of the vanne 4 voies. Now go forth and (safely) explore your pool's plumbing. Just maybe don't tell your friends you're spending your weekend inspecting valves. Some things are best kept secret, even if they are surprisingly interesting.
